Drawing JavaScript control structures with Mermaid

Bjorn Krolsavatar

Bjorn Krols

Published on
05 March 2022

Flowchart basics

We use stadium-shaped nodes for start and end points:

flowchart TD
    START_ID([Start])
    END_ID([End])

We use rhombus-shaped nodes for decisions:

flowchart TD
    CONDITION_ID{Condition}

We use rectangle-shaped nodes for processes:

flowchart TD
    ACTION_ID[Action]

We use links with arrows to represent directional relationships:

flowchart TD
    CONDITION_ID{Condition}
    ACTION_ID[Action]

    CONDITION_ID --> ACTION_ID

We can add text to links:

flowchart TD
    CONDITION_ID{Condition}
    ACTION_ID[Action]

    CONDITION_ID --> |true| ACTION_ID

We use dotted links to connect symbols in a rejection routine:

flowchart TD
    IF{If Condition}
    DO[Do Something]
    ELSE[Do Something Else]

    IF --> |true| DO
    IF -.-> |false| ELSE

Conditionals

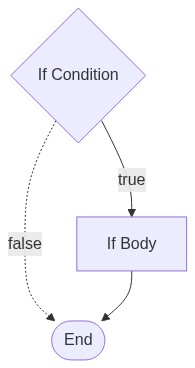

if

JavaScript:

if (ifCondition) {
  // if-body
}

Mermaid:

flowchart TD
    IC{If Condition}
    IB[If Body]
    END([End])

    IC --> |true| IB
    IC -.-> |false| END
    IB --> END

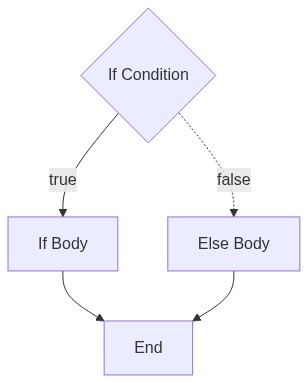

if + else

JavaScript:

if (ifCondition) {
  // if-body
} else {
  // else-body
}

Mermaid:

flowchart TD
    IC{If Condition}
    IB[If Body]
    EB[Else Body]
    END[End]

    IC --> |true| IB
    IC -.-> |false| EB
    IB & EB --> END

if + else if

JavaScript:

if (ifCondition) {
  // if-body
} else if (elseIfCondition) {
  // else-if-body
}

Mermaid:

flowchart TD
    IC{If Condition}
    IB[If Body]
    EIC{Else-If Condition}
    EIB[Else-If Body]
    END[End]

    IC --> |true| IB
    IC -.-> |false| EIC
    EIC --> |true| EIB
    EIC -.-> |false| END
    IB & EIB --> END

Notice how adding more else if statements produces a ladder-like shape:

flowchart TD
    IC{If Condition}
    IB[If Body]
    EIC1{Else-If Condition}
    EIB1[Else-If Body]
    EIC2{Else-If Condition}
    EIB2[Else-If Body]
    EIC3{Else-If Condition}
    EIB3[Else-If Body]
    END[End]

    IC --> |true| IB
    IC -.-> |false| EIC1
    EIC1 --> |true| EIB1
    EIC1 -.-> |false| EIC2
    EIC2 --> |true| EIB2
    EIC2 -.-> |false| EIC3
    EIC3 --> |true| EIB3
    EIC3 -.-> |false| END
    IB & EIB1 & EIB2 & EIB3 --> END

if + else if + else

JavaScript:

if (ifCondition) {
  // if-body
} else if (elseIfCondition) {
  // else-if-body
} else {
  // else-body
}

Mermaid:

flowchart TD
    IC{If Condition}
    IB[If Body]
    EIC{Else-If Condition}
    EIB[Else-If Body]
    EB[Else Body]
    END[End]

    IC --> |true| IB
    IC -.-> |false| EIC
    EIC --> |true| EIB
    EIC -.-> |false| EB
    IB & EIB & EB --> END

Loops

while

JavaScript:

while (condition) {
  // while-body
}

Mermaid:

flowchart TD
    START([Start])
    END([End])
    C{While Condition}
    B[While Body]

    START --> C
    C --> |true| B
    C -.-> |false| END
    B --> C

do...while

JavaScript:

do {
  // do-block
} while (condition);

Mermaid:

flowchart TD
    START([Start])
    END([End])
    C{While Condition}
    B[Do Block]

    START --> B
    B --> C
    C --> |true| B
    C -.-> |false| END

Switch statements

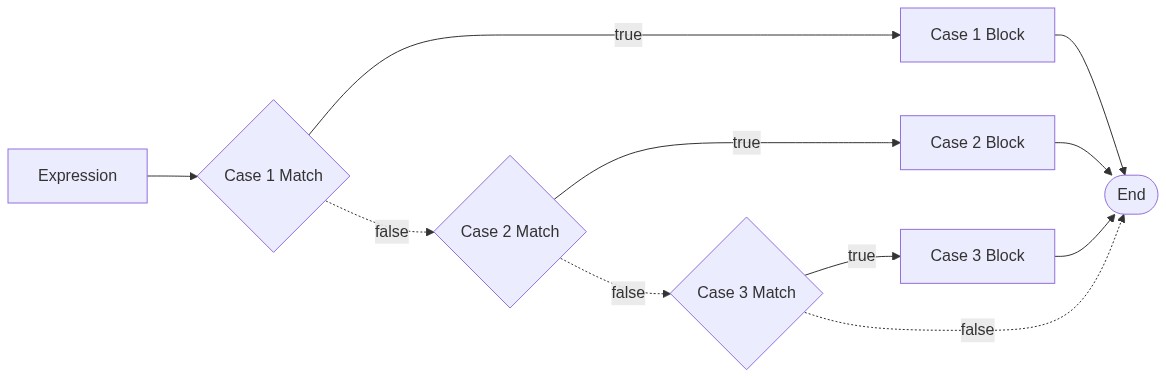

Without default case

JavaScript:

switch (expression) {
  case case1match:
    // case-1-block
    break;
  case case2match:
    // case-2-block
    break;
  case case3match:
    // case-3-block
    break;
}

Mermaid:

flowchart LR
    EX[Expression]
    C1M{Case 1 Match}
    C1B[Case 1 Block]
    C2M{Case 2 Match}
    C2B[Case 2 Block]
    C3M{Case 3 Match}
    C3B[Case 3 Block]
    END([End])

    EX --> C1M
    C1M --> |true| C1B
    C1M -.-> |false| C2M
    C2M --> |true| C2B
    C2M -.-> |false| C3M
    C3M --> |true| C3B
    C3M -.-> |false| END
    C1B & C2B & C3B --> END

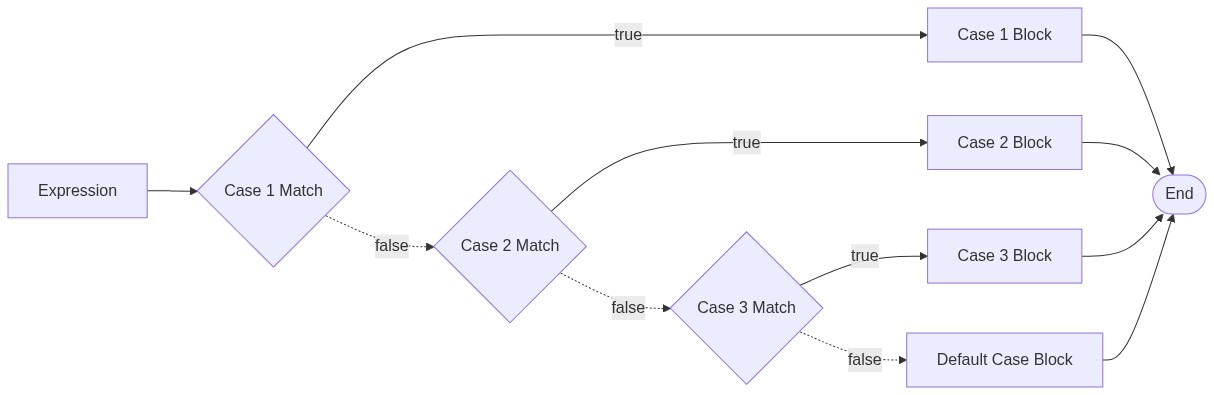

With default case

JavaScript:

switch (expression) {
  case case1match:
    // case-1-block
    break;
  case case2match:
    // case-2-block
    break;
  case case3match:
    // case-3-block
    break;
  default:
  // default-case-block
}

Mermaid:

flowchart LR
    EX[Expression]
    C1M{Case 1 Match}
    C1B[Case 1 Block]
    C2M{Case 2 Match}
    C2B[Case 2 Block]
    C3M{Case 3 Match}
    C3B[Case 3 Block]
    DCB[Default Case Block]
    END([End])

    EX --> C1M
    C1M --> |true| C1B
    C1M -.-> |false| C2M
    C2M --> |true| C2B
    C2M -.-> |false| C3M
    C3M --> |true| C3B
    C3M -.-> |false| DCB
    C1B & C2B & C3B & DCB --> END
